1949 Steam Locomotives by A.C. Gilbert

A.C. Gilbert

314AW

4-6-2

fantasy: American Flyer

AF

1949

314AW

Die-cast

painted & lettered

AC

AF

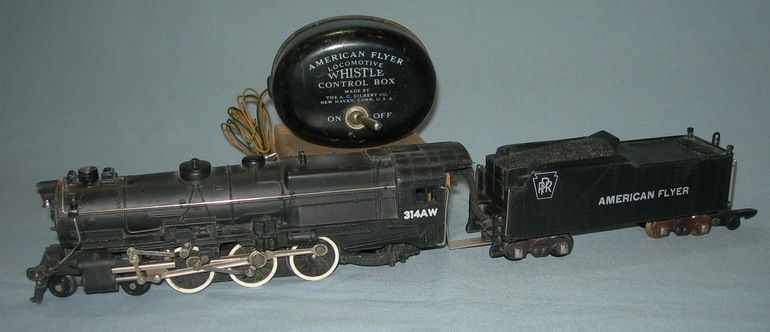

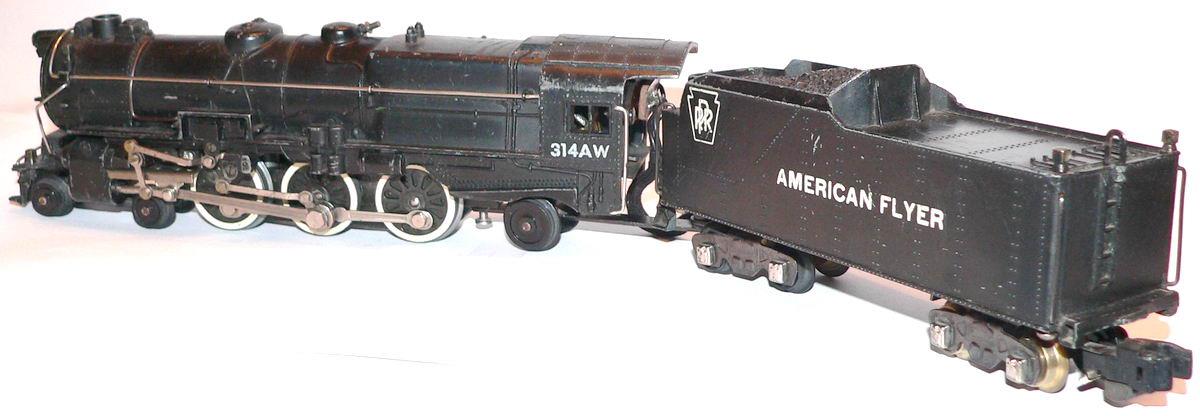

This model was produced in 1949 and 1950 and was labeled for both the Pennsylvania Railroad and American Flyer. The boiler and tender were made out of diecast metal. The whistle unit is located in the tender and controlled by a separate control box (shown in the photo) with a spring-activated switch, which applies a small amount of DC current to the track that allows the whistle to blow. There are two reported variations of #314AW. The first has a one-piece trailing trucks while the second has diecast trailing trucks. Gilbert pulled the #314AW from the market for two reasons: a pending lawsuit by Lionel for patent infringement, and the whistle unit was an operational repair headache for the service stations.
