S Lightweight Observation Passenger Cars by Union Station Products

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

Pullman-Standard

Era:

lightweight

Car Type:

observation

Doors:

2/1

Windows:

8/11

Builder Number:

4165-R

Road Name:

Chesapeake & Ohio (C&O)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Notes:

Note that the left and right long skinny window is wrapped around to the end of the car, leaving 8 and 11 windows on the sides.

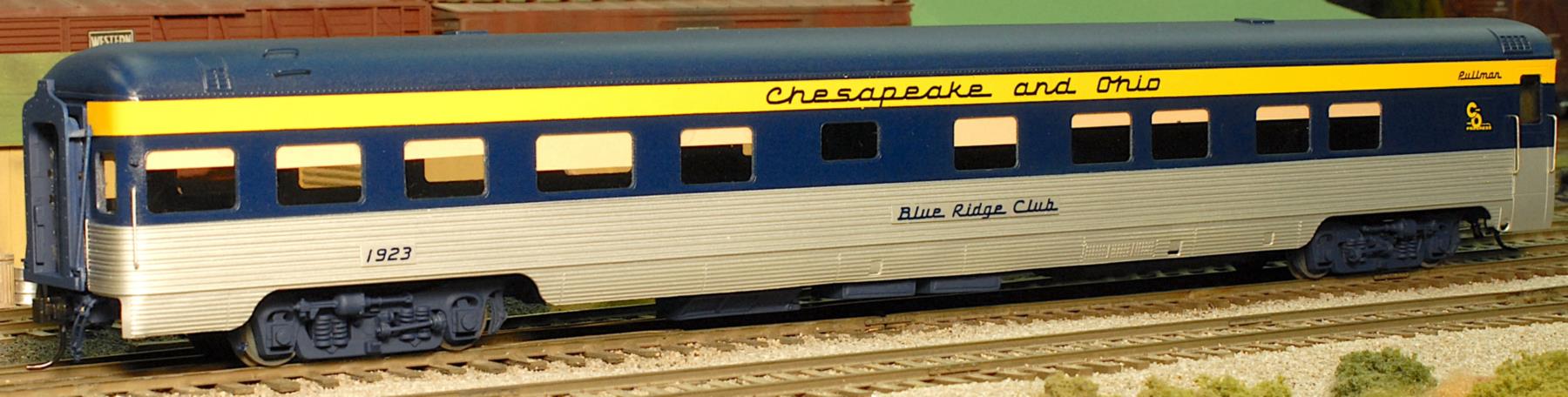

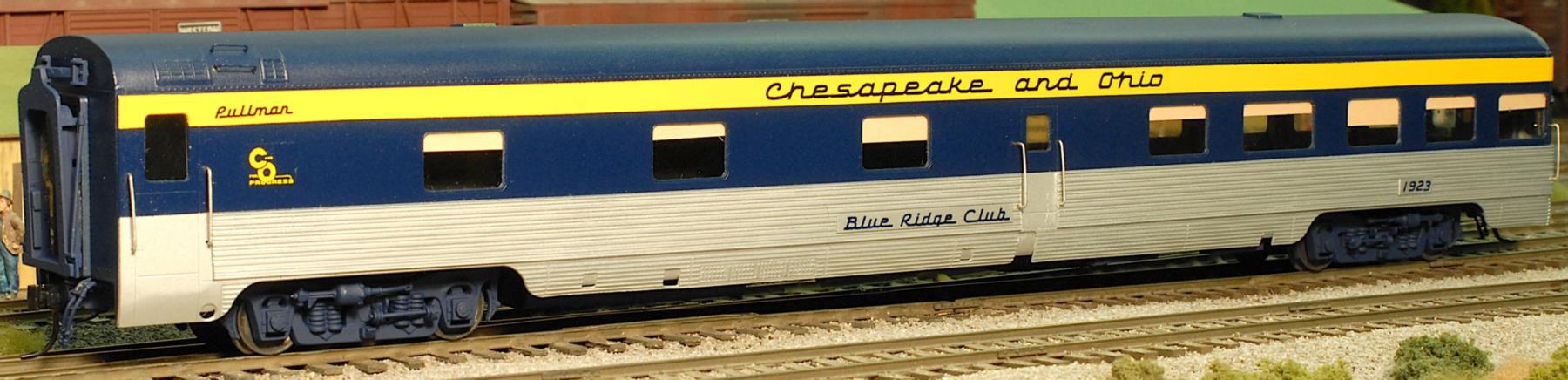

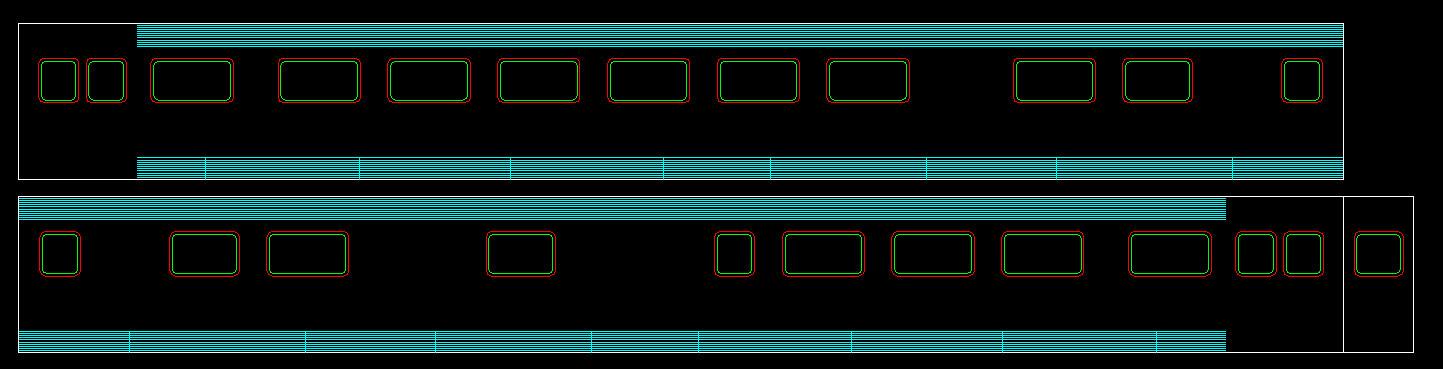

The photos show both sides of the car.

Bob Hogan's construction photos. He used a Dremel rotary tool with a cutting disk and sander bits, and honed the shape with files.

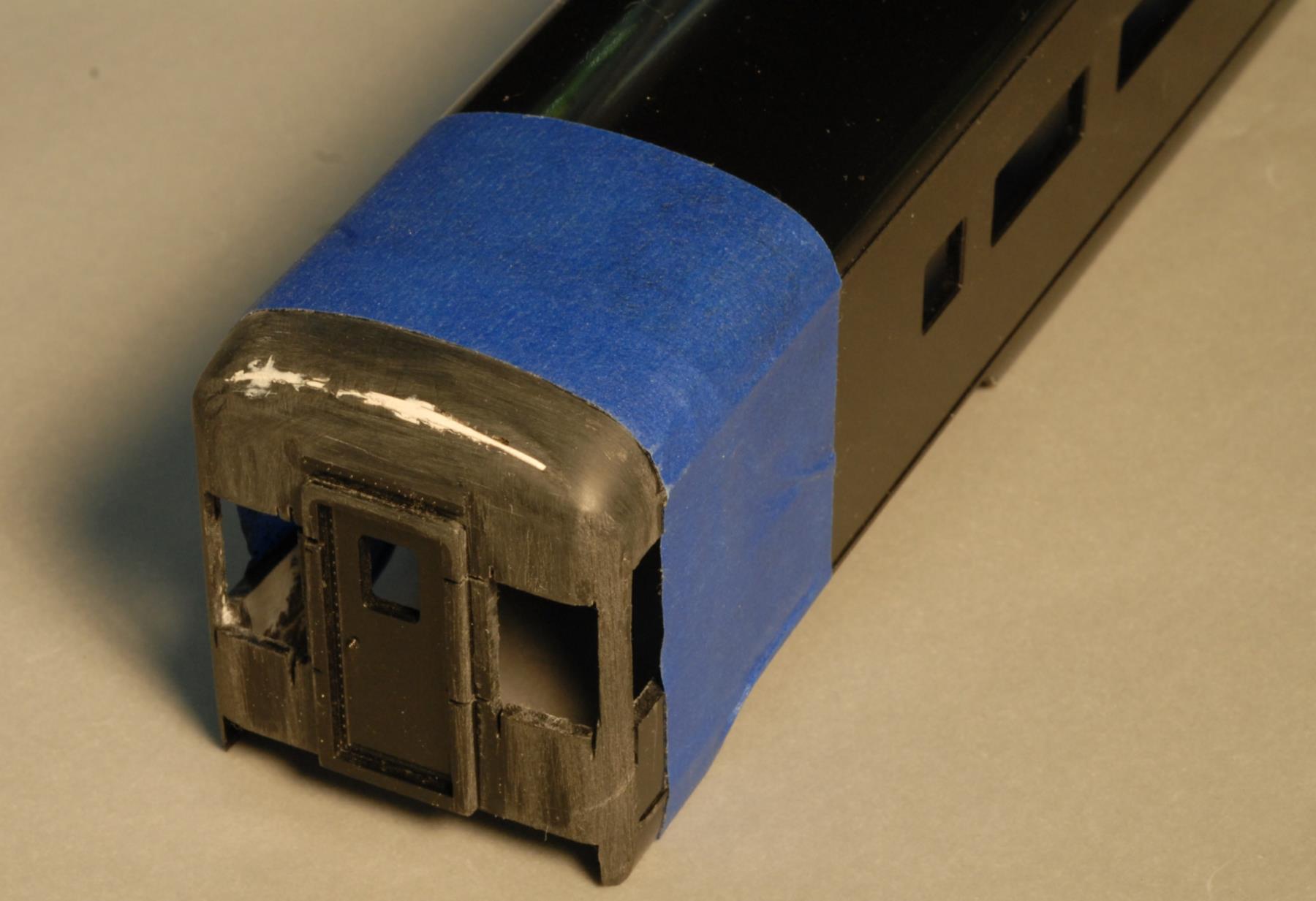

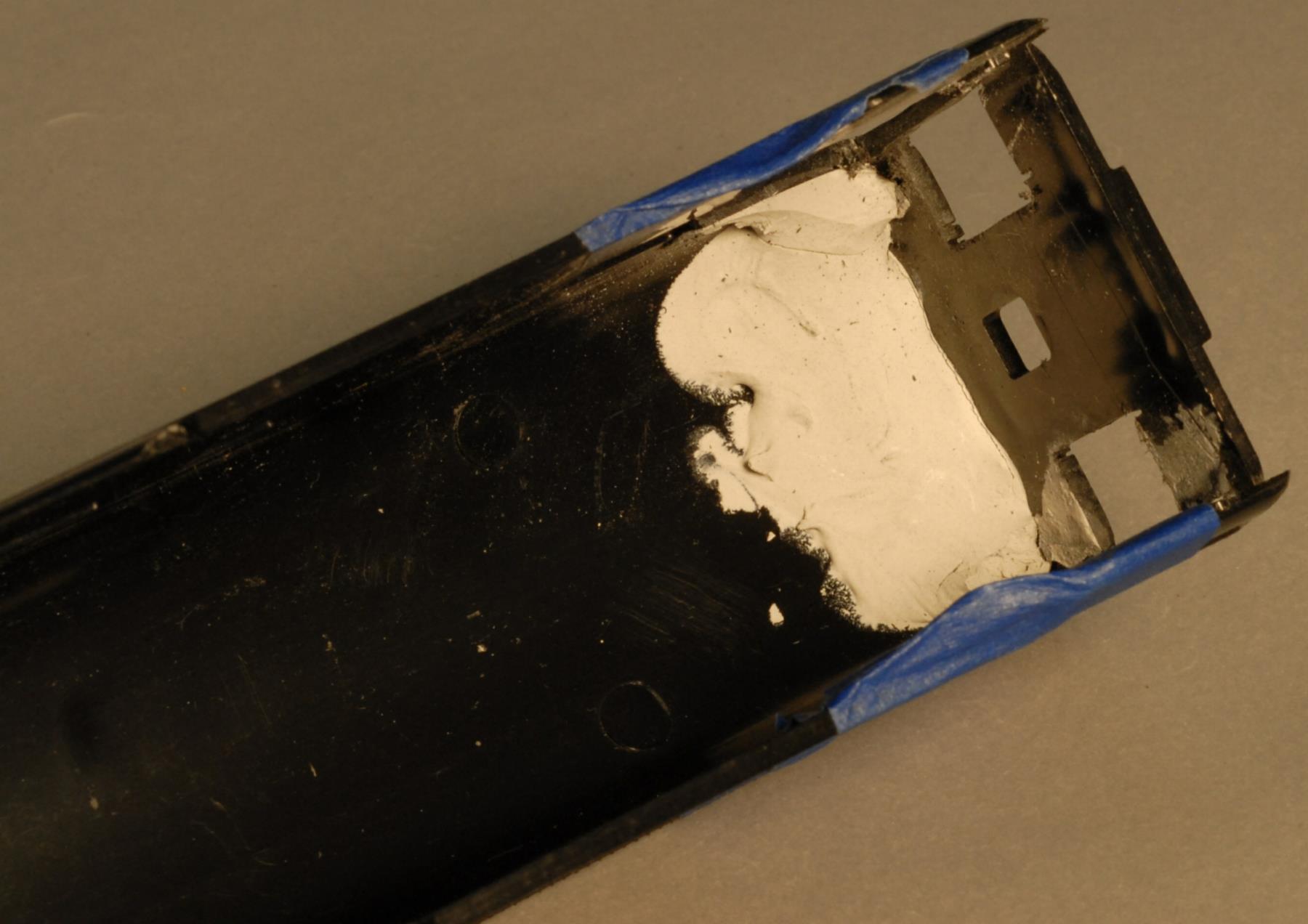

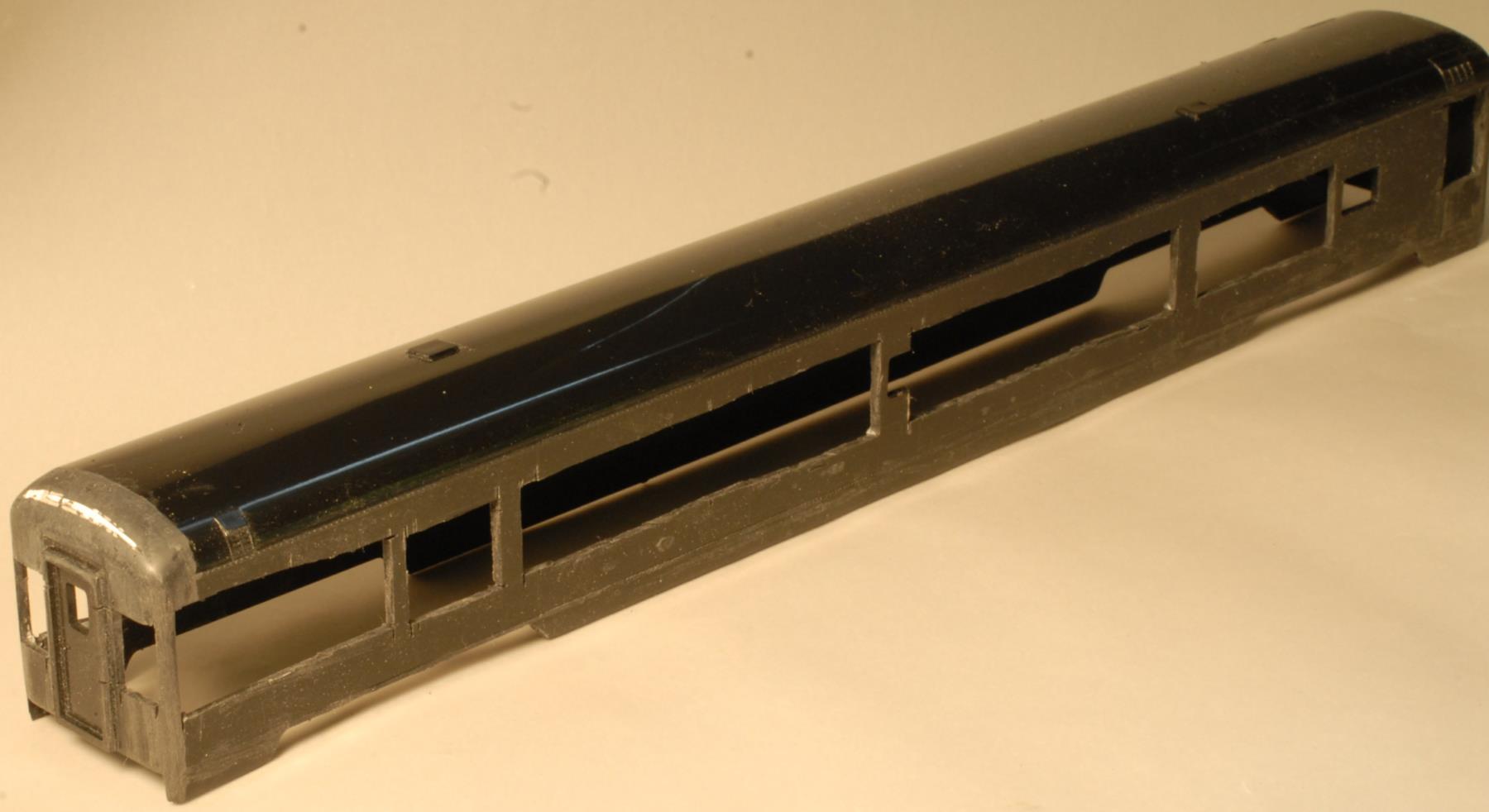

The donor body is all prepped now.

The Union Station Products sides have been attached.

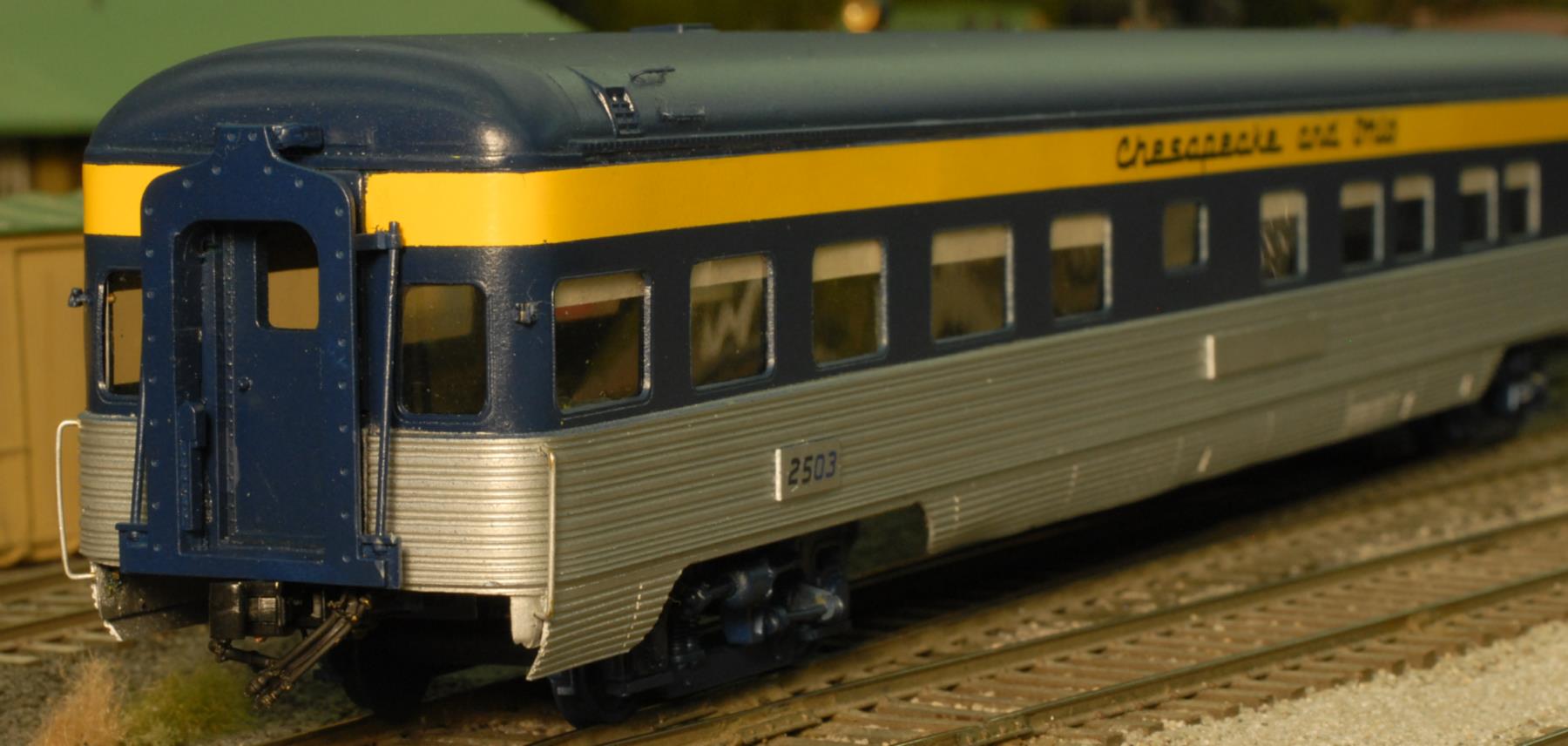

A close-up of the completed end.

Prototype Info

Manufacturer:

Budd Company

Era:

lightweight

Car Type:

observation

Doors:

1

Windows:

12

Builder Number:

964-4

Year:

1936

Road Name:

Chicago, Burlington & Quincy (CBQ)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

Budd Company

Era:

lightweight

Car Type:

observation

Doors:

2/1

Windows:

12/13

Builder Number:

9638-004

Year:

1948

Road Name:

New York Central (NYC)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

Pullman-Standard

Era:

lightweight

Car Type:

observation

Doors:

1

Windows:

13

Year:

1948

Road Name:

New York Central (NYC)

Model Manufacturer Info

Manufacturer:

Union Station Products

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Notes:

The company produced this car on a special commission by Dick Karnes. The car is not listed on their web site, but contact them if you want this 20th Century Limited model.

Dick Karnes used an American Models body core.

Prototype Info

Manufacturer:

Budd Company

Era:

lightweight

Car Type:

observation

Doors:

1/0

Windows:

11/12

Builder Number:

972

Year:

1937

Road Name:

Rock Island (RI/ROCK/CRIP)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

Pullman-Standard

Era:

lightweight

Car Type:

observation

Doors:

0

Windows:

11/12

Builder Number:

7419

Year:

1939

Road Name:

Southern Pacific (SP)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

Pullman-Standard

Era:

lightweight

Car Type:

observation

Doors:

0

Windows:

12

Builder Number:

7419-R

Year:

1963

Road Name:

Southern Pacific (SP)

Class:

79-C

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

American Car and Foundry (ACF)

Era:

lightweight

Car Type:

observation

Doors:

1

Windows:

12/13

Builder Number:

2769

Year:

1947

Road Name:

Wabash (WAB)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Prototype Info

Manufacturer:

Budd Company

Era:

lightweight

Car Type:

observation

Doors:

1

Windows:

13/14

Builder Number:

9652-037

Year:

1950

Road Name:

Wabash (WAB)

Model Manufacturer Info

Manufacturer:

Union Station Products (click for web site)

Gauge:

S

Product Type:

styrene sides (laser-cut; requires donor car)

Finish:

unpainted

Wheels:

not included

Couplers:

not included

Decals:

not included

Lighted:

no

Supplemental Info:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:

Supplemental Part:
