F3 Diesel Locomotives
Model Manufacturer Info
Manufacturer:
Dayton Model Products
Manufacturer ID:
S-900/S-902/S-905
Additional IDs:
T-900/T-902/T-905
Prototype Info
Category:
F3
Year/Era:
1945
Manufacturer:
Electro-Motive Division (EMD)
Dimensions:
50'8"
Ext. Reference:
Ext. Reference:
Ext. Reference:
Model Info
Gauge:
S
Introduced:
1947
Product Type:
Metal Kit
Finish:
unpainted or painted & undecorated
Power:
DC or non-powered
Wheels:
scale or hi-rail
Weight:
2lbs, 10oz
Online Article:
Supplemental Part:
Notes:
Model IDs: "S" = scale; "T" = "tin-plate". Pittman motors. The bronze body was cast by Lindsey Adams, of Adams & Son foundry, Wichita, Kansas.
(image copyright © Jim Syphax; used by permission)

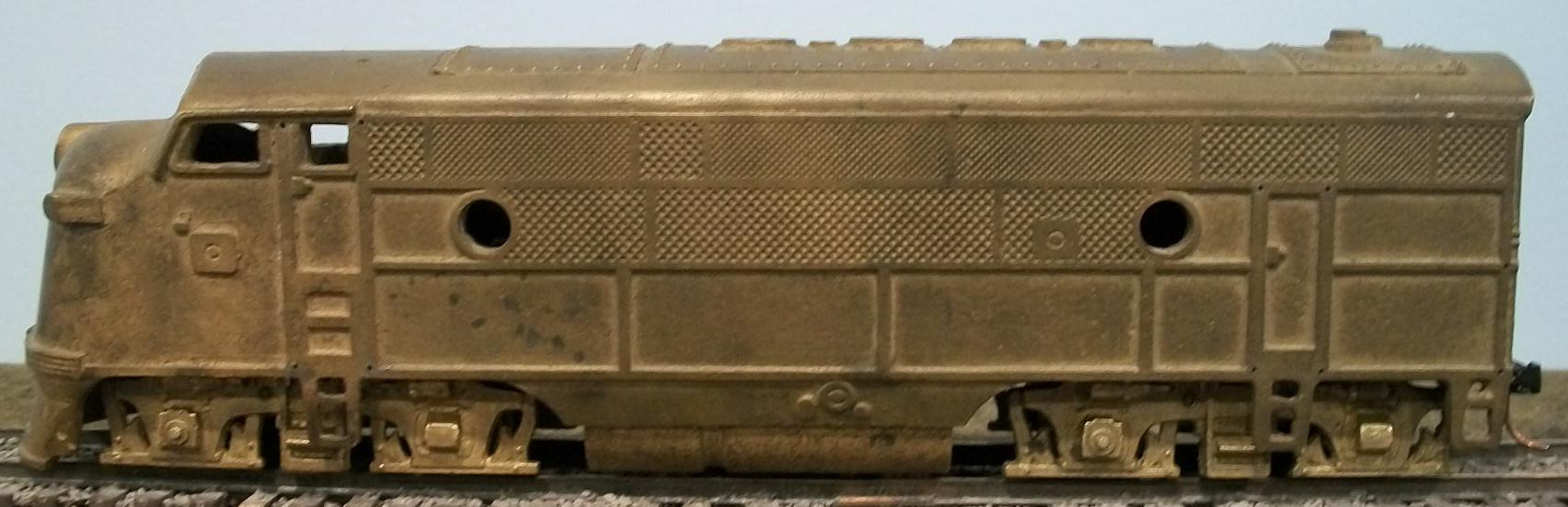

(image copyright © Martin Nickerson; used by permission)

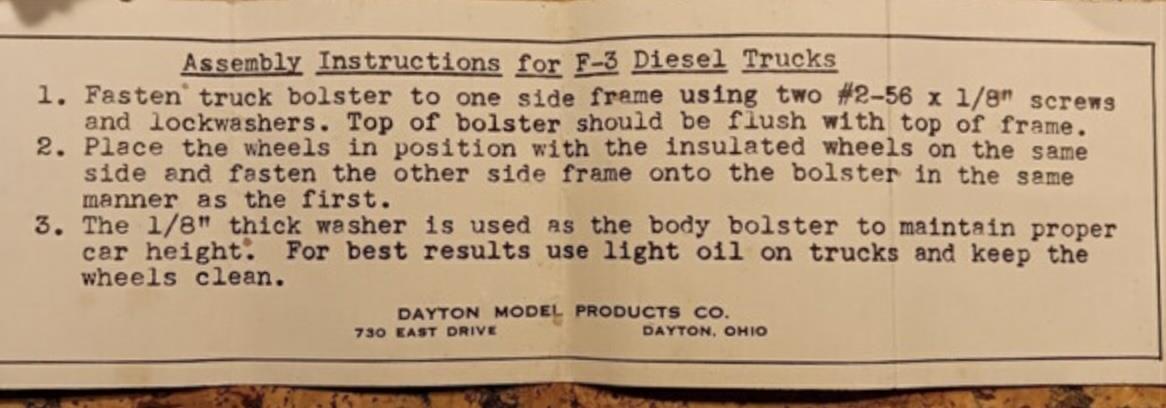

(image copyright © Mark Mugnai; used by permission)
Shows a CP A-B Consist
Shows a CP A-B Pair Being Test Run
Model Manufacturer Info
Manufacturer:
Overland Models
Manufacturer ID:
1749
Factory:
Ajin Precision, Korea
Prototype Info
Category:
F3
Year/Era:
1945
Manufacturer:
Electro-Motive Division (EMD)
Dimensions:
50'8"
Ext. Reference:
Ext. Reference:
Ext. Reference:
Model Info
Gauge:
S
Introduced:
1987
Product Type:
Brass
Finish:
unpainted
Power:
DC
Wheels:
scale
Supplemental Part:
Notes:
In the model railroading community these were labeled as "Phase II" models. Bill Winans offers these tips for improving the stock models. The drive is under stress (leading to noise and overheating of the motor), which is caused by the overlapping shafts between the two axles in the trucks. The shaft coming from each axle's gearbox is just a hair too long. If you grind/cut just a 1/32" to 1/16" off of each of those half round shaft ends, it will allow the axles and shaft bearings to run free. No other adjustments needed, and you could probably cut more off, but don't do it until you know you have to. Before making the modifications, Bill states that you can check this first by taking the truck(s) off of the engine and turning the input shafts by hand. Then, take the side frames off and turn the shaft again. It should turn much more easily. You can also separate the two gearboxes and check each one by themselves. He also recommends applying LaBelle 102 gear oil to each gearbox, and turn the engine into 8-wheel electrical pickup.

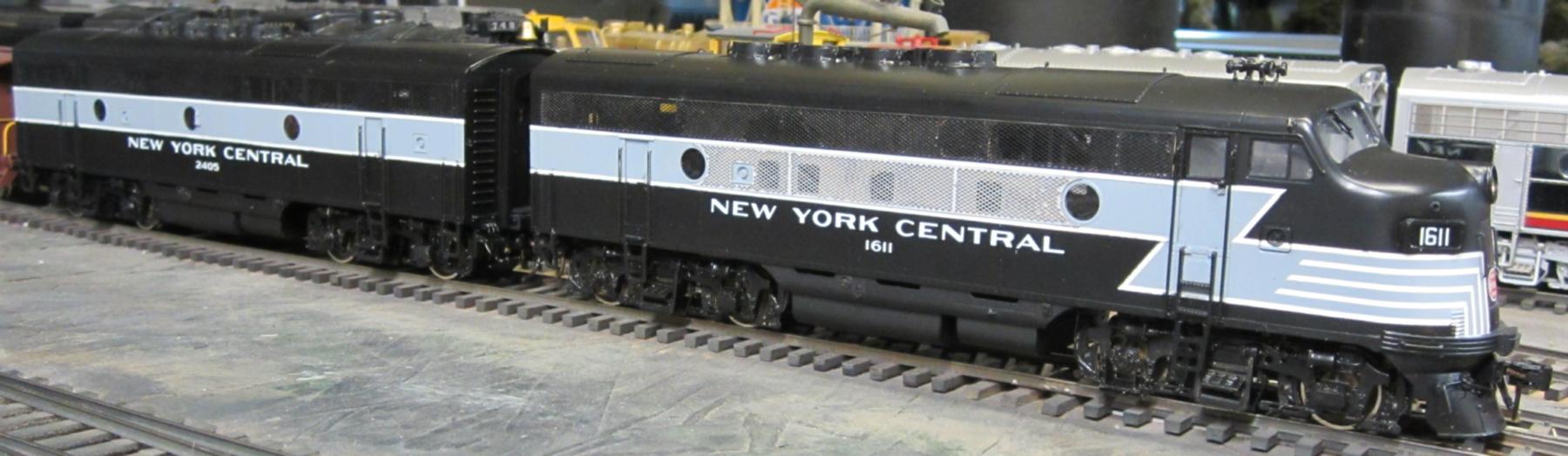

(image copyright © Jim Kindraka; used by permission)

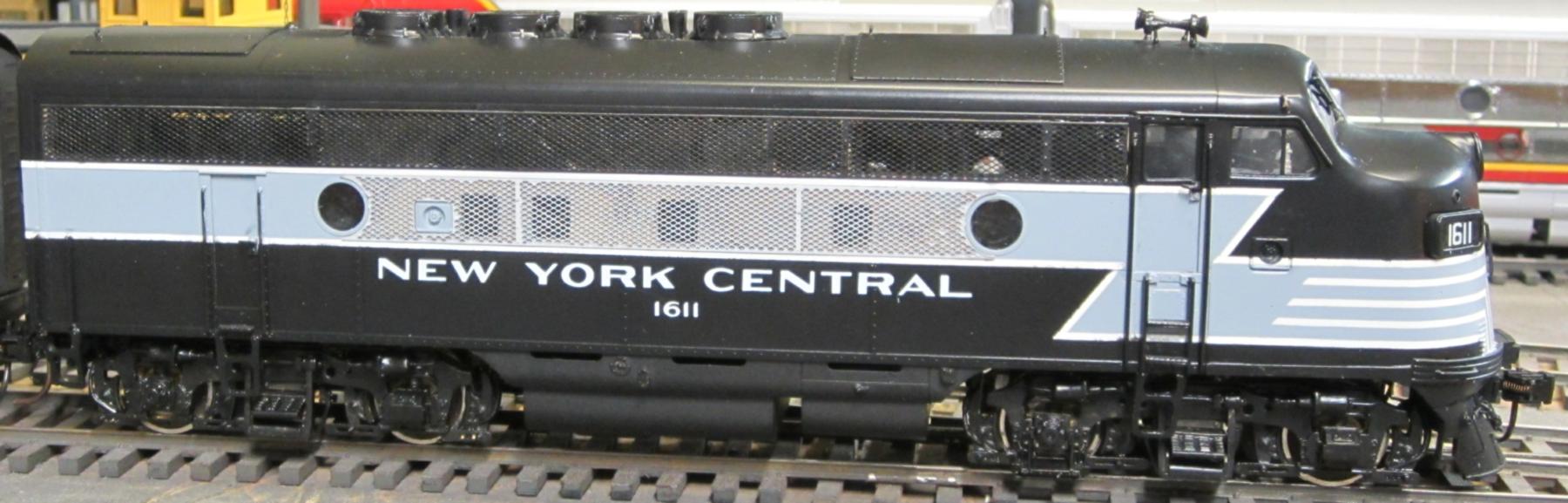

(image copyright © Jim Kindraka; used by permission)

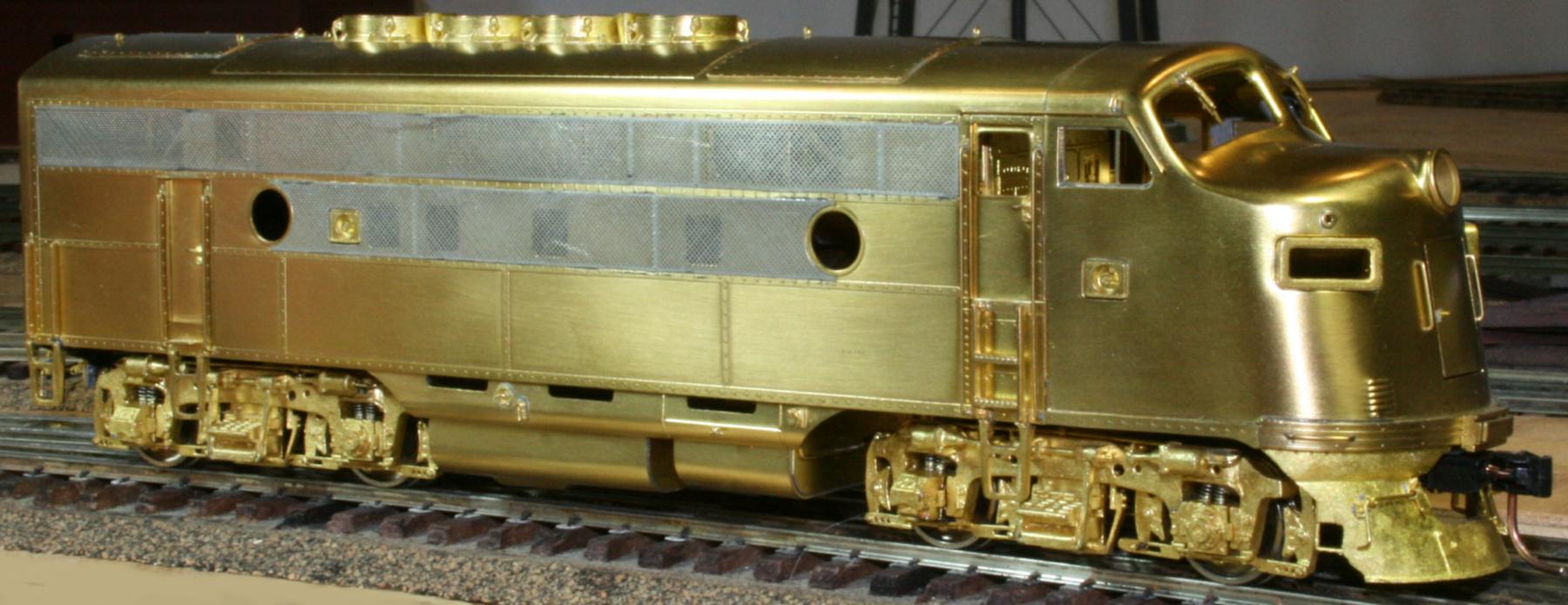

(image copyright © Bill Winans; used by permission)
