Coupler Gauge by CESCO

Manufacturer:

CESCO (click for web site)

Category:

Coupler Gauge

Scale:

Sn3

Material:

3D-printed plastic

Color:

various

Sold:

assembled

Notes:

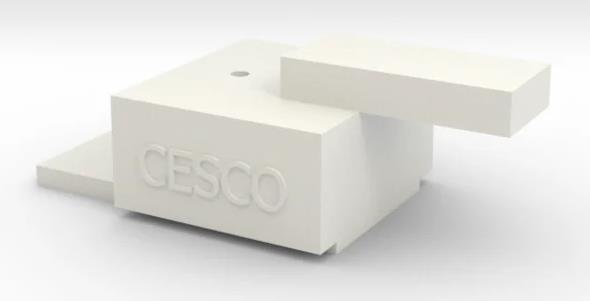

This gauge is designed for the Kadee HO-scale #5 coupler, but is suitable for Sergent and other couplers as well. Looking at the first image, the test coupler should be installed in the mounting hole facing left. The to-be-tested car's trip pin should just touch the plate on the left. The protrusion on the right is used to check the position of a coupler draft gear box (prior to installing the coupler head itself).
